PeakTech^® 3435

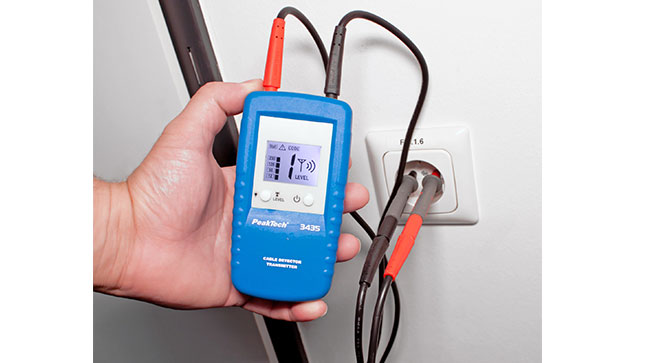

Cable Detector-Set consisting of a transmitter & receiver

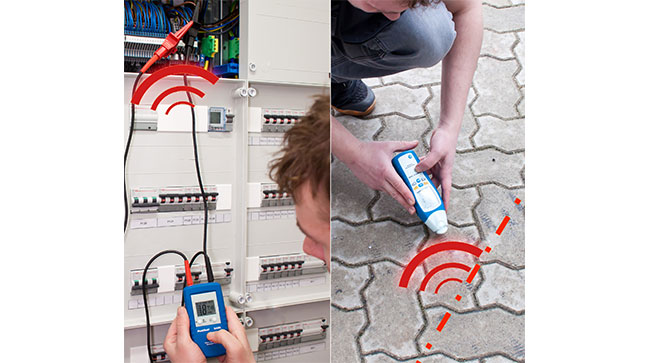

This new Cable Detector consisting of an Transmitter and a Receiver is suitable for the search of non-energized and live wires, as well as line breaks and line tracking of surface- and flush- mounted conductors, pipe systems and even conductors underground. Also power circuits can be localized in distribution panels and electric cabinets. By the adjustable channels up to 7 transmitters can be used simultaneously, which are displayed correctly with the receiver through the assigned channel number. The high sensitivity of the receiver allows the tracing of conductors from up to 2 meters distance. Through these powerful features this device is well suited for complex electrical systems, pipe installations and heating systems for testing new installations and also to evaluate older systems in reconstruction works.

• LCD display with backlight and bargraph
• Tracking of conductors in walls, ceilings and floors
• Finds discontinuity and short-circuits
• Assignment of switches and fuses
• Tracking of metallic pipe systems
• Tracking of lightning protection and grounding systems
• For non- energized and live wire systems
• Non contact voltage finder with bargraph
• High tracing depth up to 2 meters
• Up to seven transmitters per receiver are possible

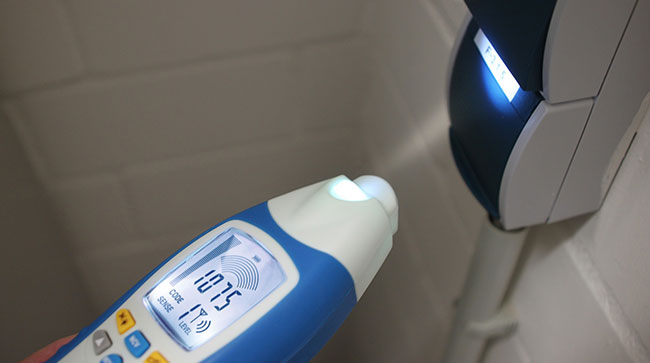

• Ultra bright LED as Flashlight
• Safety: EN 61010, 1 CAT III
• Accessories: Case, Test leads, Clamps, Probes, 2 pieces 9V- Batteries and manual
