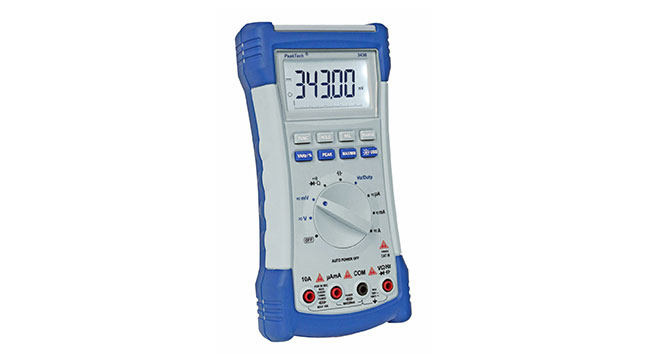

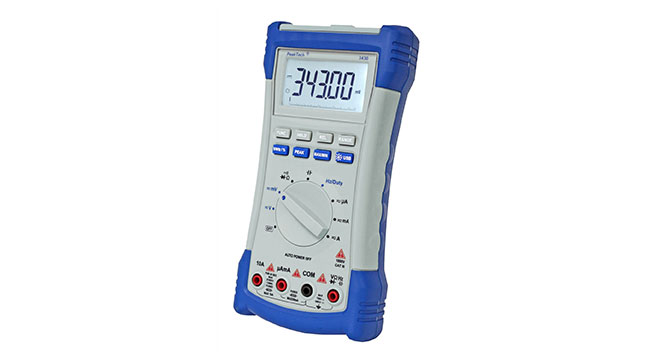

PeakTech® 3430
THB 5,000.00
SKU :
-
Digital Multimeter ~ 20.000 Counts ~ 1000V DC / 700V AC ~ 10A AC/DC with TrueRMS, TÜV/GS & USB
New constructed high-class digital multimeter with 4 1/2-digit multifunction display (max. 22000), 46-segment analogue bargraph and integrated USB-interface for easy connection with computer to realize macro recording, monitoring and capture of transient dynamic data. Full input protection, backlight and easy operating for choosing several measurement functions with the help of the clear view pushbutton section. The True RMS AC voltage and current readings are other most important features of this new constructed multimeter.
- 21 mm, 4 1/2-digit LCD-display, backlight and 46-segment bargraph; max. display: 22000
- Fully "PeakTech DMM Tool" compatible
- True RMS measurement for ACV and ACA
- USB 2.0- interface to transmit measuring data to the PC
- Sampling Rate: ca. 4x/sec. (2x/sec. via USB)
- Diode-, continuity-test
- Peak detect
- DATA-, MAX-, MIN-HOLD
- Relative function
- Auto and manual range selection
- Auto power off and low battery indication
- Safety: EN 61010-1, CAT III 1000V/ CAT IV 600V

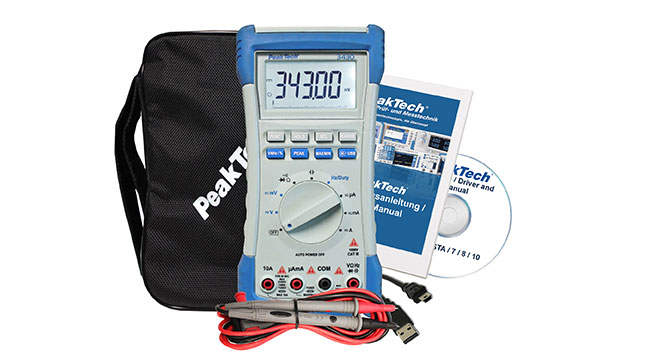

- Accessories: test leads, carrying case, USB-interface cable, software for Windows, batteries and manual
- Software Download: DMM Tool
| DCV | 220 mV/2,2/22/220/1000 V; 0,01 mV; +/- 0,05 % + 3 dgt. |
| ACV | 220 mV/2,2/22/220/700 V; 0,01 mV; +/- 0,8 % + 4 dgt. / frequency range: 40 ... 400 Hz |
| DCA | 220/2200 µA/22/220 mA/10 A; 0,01 µA; +/- 0,8 % + 4 dgt. |
| ACA | 220/2200 µA/22/220 mA/10 A; 0,01 µA; +/- 1,0 % + 3 dgt. / frequency range: 40 ... 400 Hz |
| Ohm | 200 Ω/2,2/22/220 kΩ/2,2/22/220 MΩ; 0,01 Ω; +/- 0,8 % + 2 dgt. |
| Capacitance | 22/220 nF/2,2/22/220 µF/2,2/22/220 mF; 0,01 nF; +/- 2,5 % + 3 dgt. |
| Frequency | 22/220 Hz/2,2/22/220 kHz/2,2/22/220 MHz; 0,01 Hz; +/- 0,2 % + 3 dgt. |
| Operation voltage | 4 x 1,5 V (AA) batteries |
| Dimensions (WxHxD) | 102 x 205 x 58 mm |
| Weight | 390 g |
| EAN-13 | 4250569400933 |
