PeakTech^® 1073

600V AC/DC Smart-Multimeter with NCV & Live-Test

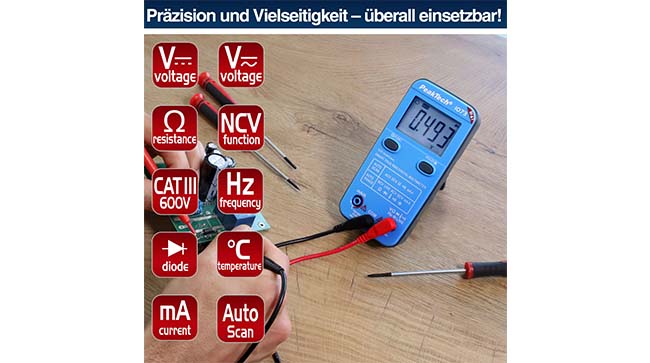

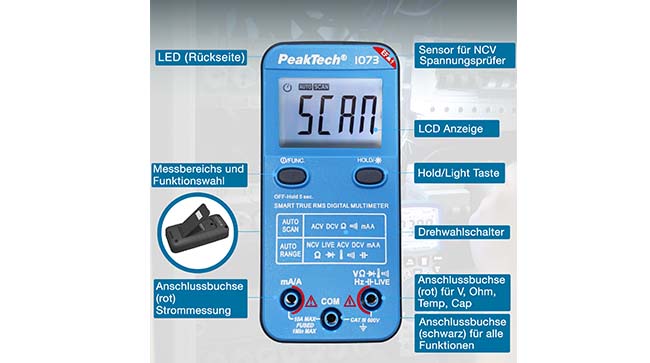

Our new “Smart” digital multimeter combines state-of-the-art technology with an impressive range of functions in a compact design. It measures voltages up to 600V AC/DC, is CAT III certified and features True RMS for precise measurements with varying voltages. The integrated NCV voltage tester enables non-contact voltage detection, while the LIVE test reliably identifies phases and neutral conductors. Thanks to the automatic search of the measuring function, you no longer need a rotary selector switch. The multimeter automatically recognizes what is being measured and adjusts itself accordingly. The 4000-digit LCD display with blue backlighting ensures clear readability of the measured values and changes to red when measuring ranges are exceeded or the NCV voltage tester detects a voltage. In addition to the standard measurements for voltage, current (AC & DC), resistance, continuity, diode test and temperature, this multimeter also offers capacitance and frequency measurements.iode test and temperature, this multimeter also offers capacitance and frequency measurements.

• Smart TrueRMS multimeter with automatic function selection
• Manual function selection possible at the touch of a button
• 3 3/4 digit LCD display with 4,000 counts

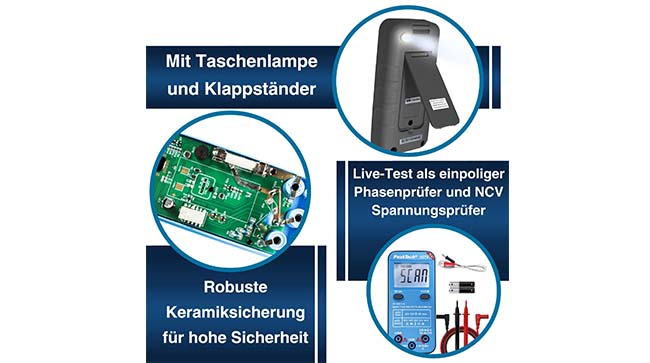

• Backlight (blue/red) and LED light
• Continuity test and diode test function
• Capacitance, temperature & frequency measurement
• Live test and NCV voltage tester
• Auto-Power-Off and battery status indicator
• Sturdy ABS plastic housing
• Safety: EN 61010-1, CAT III 600V

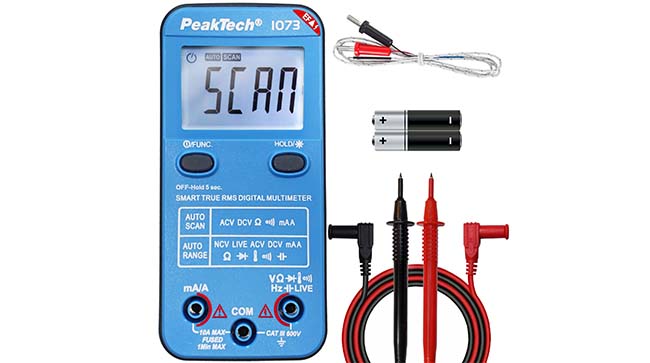

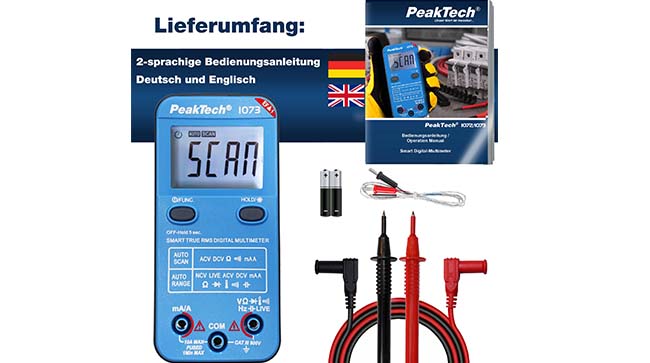

• Accessories: Test leads, thermocouple, batteries and operating instructions
