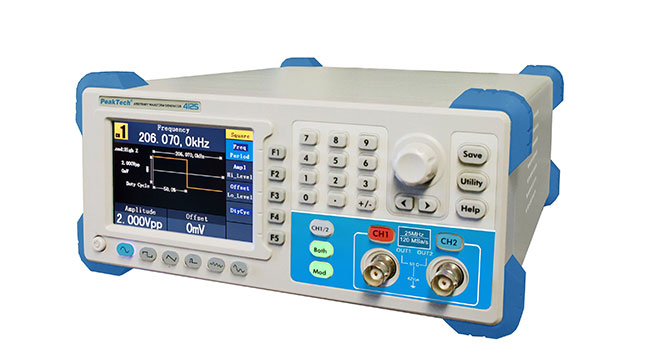

PeakTech® 4125
THB 21,000.00
SKU :
-
2CH Arbitrary Waveform Generator,
1 uHz – 25 MHz
This newly designed arbitrary waveform generator with advanced graphical user control has excellent technical properties and a high variety of functions. Of particular note here are the two equivalent output channels, easily accessible via the various menu buttons, a wide range of functions and the many different types of modulation. In this way this generator is perfect for almost all tasks in education, research and development.
- Large 3.9“ high resolution TFT-LCD display for both channels at once

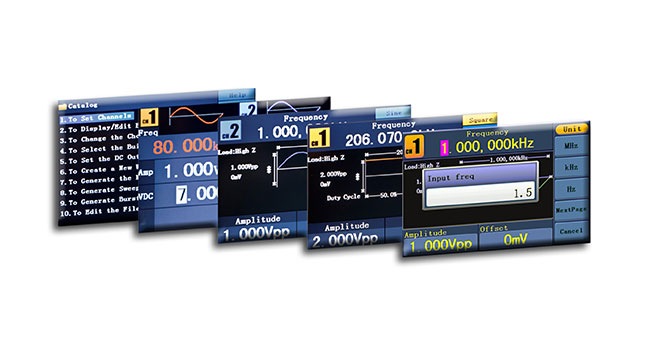

- New developed graphical user interface (GUI) with many functions
- Two independent channels with same technical characteristics
- 1uHz frequency resolution for whole bandwidth
- 125 MSa/s sampling rate, 14 bits vertical resolution
- 6 standard waveforms (Sinus, Square, Triangle, DC etc.)
- 26 arbitrary waveforms (Hamming, Gaussian, Trapezia, Tan etc.)
- Integrated waveform editor, storable on USB-drive
- 4 types of modulation (AM, FM, PM, FSK)
- Channel- coupling and combine features, Sweep- and Burst function
- Integrated 200 MHz frequency counter
- Software program for remote control and waveform edit
- Safety: EN 61010
- Accessories: Power cable, USB interface cable, Software for Windows 2000/XP/VISTA/7/8/10, BNC-cable, Manual on CD
| Frequency range | 1 uHz – 25 MHz (Sinus) |
| Display | 10 cm (3.9“) TFT, 480 x 320 pixel, 65536 color, 16Bit |
| Output Waveforms | 6 Standard (1uHz … 5 MHz) , 26 Arbitrary (1uHz … 10 MHz) |
| Harmonic Distortion | < -40 dBc (1.0 Vpp) |
| Total Distortion | < 0.2% (10.. 20kHz) |
| Signal characteristics | 125 MSa/s ; 14 Bit ; 8.000 Points |
| Duty cycle | 0.1 % … 99.9% |
| Frequency resolution | 1 uHz |
| Amplitude range | 1mVpp … 20Vpp |
| Types of Modulation | AM, FM, FSK, PM |
| Frequency coutner | 0.01 Hz … 200 MHz; 6 dgt. |

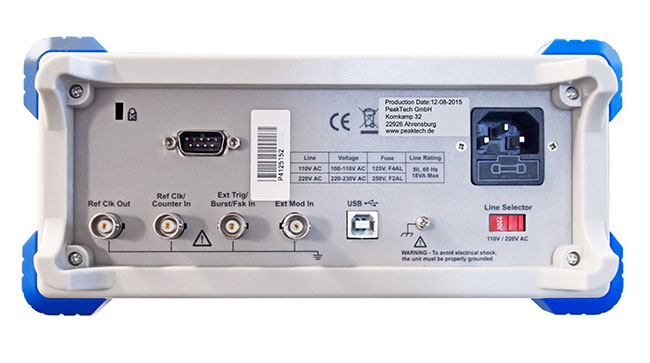

| PC Interface | USB Host, USB Device, RS232 |
| Operation voltage | 100 ~ 240 V AC; 50 / 60 Hz |
| Dimensions (WxHxD) | 235 x 110 x 295 mm |
| Weight | 3 kg |
