PeakTech® 4124
THB 17,000.00
SKU :
-
2CH Arbitrary Waveform Generator,
1 µHz – 10 MHz
This newly designed arbitrary waveform generator with advanced graphical user control has excellent technical properties and a high variety of functions. Of particular note here are the easily control via the various menu functions, a wide range of integrated waveforms and the excellent price/performance ratio. In this way this generator is perfect for almost all tasks in education, research and development.
- Large 4“ high resolution color TFT-Display
- 2 equivalent output channels with channel coupling mode

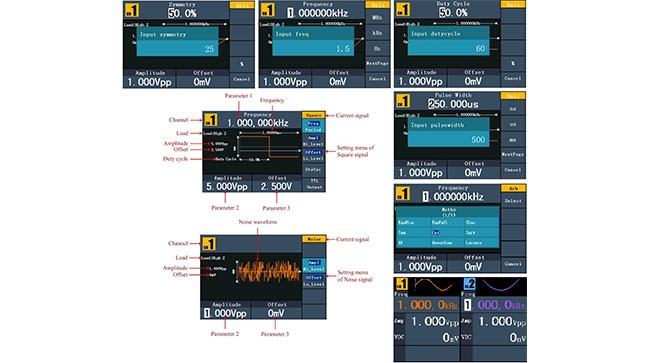

- New developed graphical user interface (GUI) with many functions
- 1µHz frequency resolution for whole bandwidth
- High sampling rate of 125 MS/s
- 14-Bit vertical resolution
- Integrated waveform editor (2 to 8.000 Points)
- 6 standard waveforms (Sinus, Square, Triangle, DC etc.)
- 45 arbitrary waveforms (Hamming, Gaussian, Trapezia, Tan etc.)
- Sweep and Burst mode
- SCPI support
- Software program for remote control and waveform edit
- Safety: EN 61010
- Accessories: Power cable, USB interface cable, Software for Windows, BNC-cable, Manual and SCPI protocol on CD
| Display | 10 cm (4“) TFT, 480 x 320 pixel, 65536 color, 16Bit |
| Output Channels | 2 |
| Phase deviation (2CH) | 0 ... 360° |
| Frequency range Sine | 1 µHz – 10 MHz |
| Frequency range Square | 1 µHz – 5 MHz |
| Frequency range Pulse | 1 µHz – 5 MHz |
| Frequency range Ramp | 1 µHz – 1 MHz |
| Frequency range Arb. | 1 µHz – 5 MHz |
| Frequency range Noise | 25 MHz (-3dB) |
| Frequency resolution | 1 µHz full bandwidth |
| Vertical resolution | 14-Bit |
| Sampling rate | 125 MS/s |
| Waveform length | 2 pts. ... 8.000 pts |
| Amplitude range (50Ω) | 1 mVpp … 12.5 Vpp |
| Amplitude range (High Z) | 1 mVpp … 25 Vpp |
| Modulation Types | AM, FM, FSK, PM |
| Internal Memory | 64 MByte |
| PC Interface | USB Device / USB Host |
| Operation voltage | 100 ~ 240 V AC; 50 / 60 Hz |
| Dimensions (WxHxD) | 235 x 110 x 295 mm |
| Weight | 3 kg |
| EAN-13 | 4250569404276 |
