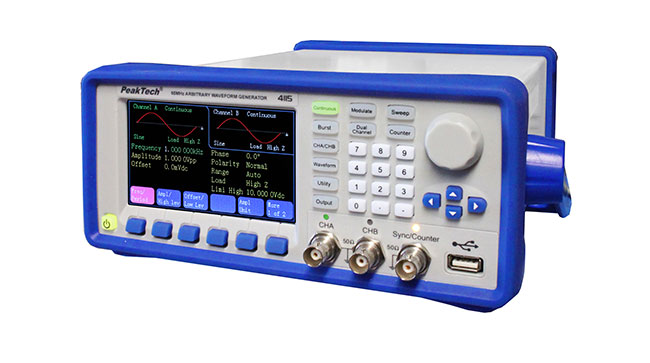

PeakTech® 4115
THB 41,000.00
SKU :
-
2CH Arbitrary Waveform Generator,
1 uHz – 60 MHz
This newly developed high-quality arbitrary waveform generator has excellent technical properties and a high variety of functions. Of particular note here are the two equivalent output channels, the large number of pre-stored arbitrary waveforms and many different types of modulation. In this way, this device is perfectly suited for nearly all tasks in research, development and the training area.
- Large 4.3“ high resolution TFT-LCD display for both channels at once
- Two independent channels with same technical characteristics
- 1uHz frequency resolution for whole bandwidth
- 150 MSa/s sampling rate, 14 bits vertical resolution
- 5 standard waveforms (Sinus, Square, Triangle etc.)
- 50 arbitrary waveforms (Sin(x)/x, Gaussian, 1 /x, Noise etc.)
- 5 user- defined arbitrary waveforms, editable with PC-Software
- 9 types of modulation (AM, FM, PSK, FSK, PM, PWM, SUM, BPSK)
- Channel- coupling and combine features, Sweep- and Burst function
- Integrated 350 MHz frequency counter, 8 W power amplifier
- Two different software programs for remote control and waveform edit
- Safety: EN 61010; CAT II
- Accessories: Power cable, USB interface cable, Software for Windows 2000/XP/VISTA/7/8/10, BNC-cable, Manual on CD
| Frequency range | 1 uHz – 60 MHz |
| Output waveforms | 5 Standard, 5 User-defined, 50 Arbitrary |
| Harmonic distortion | < -60 dBc (< 5MHz) / < -50 dBc (> 30MHz) |
| Total distortion | < 1% |
| Signal characteristic | 150 MSa/s ; 14 Bit ; 4096 Pts. |
| Duty cycle | 0.1 % … 99.9% |
| Frequency resolution | 1 uHz |
| Amplitude range | 0 … 20Vpp |
| Type of modulation | AM, FM, PSK, FSK, PM, PWM, SUM, BPSK |
| Frequency counter | 0.01 Hz … 350 MHz; 6 dgt. |
| Power amplifier | 8 W (8Ω) ; 2 W (50 Ω) |
| Operation voltage | 100 ~ 240 V AC; 50 / 60 Hz |
| Dimensions (WxHxD) | 256 x 102 x 322 mm |
| Weight | 3 kg |
| EAN-13 | 4250569402463 |
