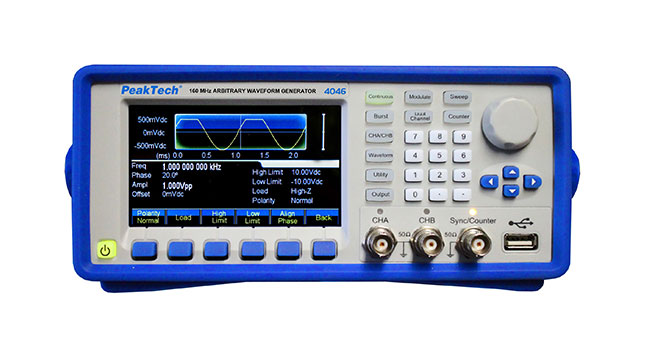

PeakTech® 4046
THB 62,000.00
SKU :
-
2CH Arbitrary Waveform Generator,
1μHz -160 MHz
This newly developed high-performance arbitrary waveform generator has excellent technical characteristics and a wide range of functions at a high output frequency of up to 160 MHz.
Of particular note here are the two equivalent output channels, the large number of stored arbitrary waveforms and the many types of modulation.
The waveform is graphically displayed in the color TFT display, which shows the selected item with guidelines, such as Frequency setting, period, amplitude, offset, polarity, phase shift angle and the different modulation types.
In addition to the frequency sweep, burst and modulation functions, this machine also has a 7-digit frequency counter with high measurement functions suitable for frequencies up to 350 MHz.
The high number of features and the ease of use of this device is ideal for nearly all tasks in research, development and education.
- Large 11 cm (4.3 ") TFT digital display for both channels
- Dual channel output with identical resolution
- 1μHz frequency resolution for the entire range
- High 500 MSa / s sampling rate with 14-bit vertical resolution
- Over 140 different standard and arbitrary waveforms (sin (x) / x,Gaussian, 1 / x, Noise etc.) integrated
- Many types of modulation (AM, FM, PSK, FSK, PM, PWM, SUM, ASK, 3FSK, 4 FSK)
- Channel Coupling, Sweep and burst function
- Integrated 350 MHz frequency counter with 7 digit resolution
- Software for remote control and waveform processing

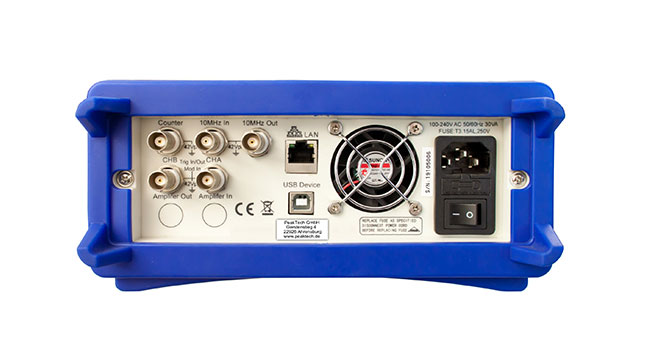

- USB Host, USB Device and LAN interface
- Safety: EN 61010-1
- Accessories: Power cable, USB interface cable, Software for Windows 2000/XP/VISTA/7/8/10, BNC cable, Manual on CD
| FREQUENCY RANGE : | |
|---|---|
| Sine | 1 μHz - 160 MHz |
| Square & Pulse | 1 μHz - 50 MHz |
| Arbitrary | 1 μHz - 30 MHz |
| Ramp | 1 μHz - 5 MHz |
| Frequency Resolution | 1 μHz; 12-digits |
| Accuracy | ±2 ppm+1 μHz |
| WAVEFORM : | |
| Standard Waveforms | Sine, Square, Rampe, Pulse, Noise, DC |
| Arbitrary Waveforms | 137 Integrated Waveforms |
| SINE WAVEFORM : | |
| Harmonic Distortion (Sine) | ≤ -60 dBc (< 10 MHz); ≤-45 dBc (≥100 MHz) |
| Total Distortion (Sine) | ≤ 0.1% (20 Hz … 20 kHz, 20 Vpp) |
| SQUARE, PULSE AND RAMP : | |
| Edge-Time (Square) | ≤ 8ns |
| Duty Cycle (Square) | 0.1% - 99.9% |
| Pulse Width | 10 ns ~ 1000 s |
| Symmetry (Ramp) | 0.0% ~ 100.0% |
| ARBITRARY WAVEFORM : | |
| Arbitrary Waveform Length | 6 - 1M Points |
| Arbitrary Sampling Rate | 500 MSa/s |
| Vertical Resolution | 14 bits |
| AMPLITUDE SPECIFICATION : | |
| Amplitude Range | 2 mVpp ~ 20 Vpp (≤ 40 MHz) … 2 mVpp ~ 4 Vpp (≥120 MHz) |
| Accuracy | ±(setting value x1%＋2 mVpp) |
| Amplitude Resolution | 0.1 mVpp - 2 mVpp |
| MODULATION OUTPUT (CHA & CHB) : | |
| Modulation Frequency | 1 mHz … 100 kHz |
| Modulation Depth | 0% - 120% |
| Phase Deviation | 0° - 360° |
| FSK, 3FSK, 4FSK Hop Frequency | 1 μHz … Max. Frequency @ 1 mHz...1 MHz Hop Rate |
| SWEEP (CHA & CHB) : | |
| Sweep Time | 1 ms … 500 s |
| Sweep Type | Linearity, Logarithm |
| BURST MODE : | |
| Waveform | Sine, Square, Sawtooth… |
| Period | 1 μs - 500 s @ 1 - 1000000 |
| Start-End Phase | 0° - 360° |
| Trigger Source | Internal, External, Manual |
| CHANNEL COUPLING : | |
| Frequency Coupling | Freq. Ratio, Difference |
| Amplitude Coupling | Amp. Difference, Offset Difference |
| FREQUENCY COUNTER : | |
| Measurement Range | 0.1 Hz - 350 MHz |
| Resolution | 7 Digits |
| Pulse Width Measurement | 100 ns ~ 20 s |
| Duty Cycle Measurement | 0.1% ~ 99.6% |
| GENERAL SPECIFICATIONS : | |
| Interfaces | USB-Host, USB Device, LAN |
| Operation Voltage | 100 ~ 240 V AC, 45 ~ 65 Hz, < 30 VA |
| Dimensions (WxHxD) | 367 x 256 x 106 mm |
| Weight | 3,7 kg |
| EAN-13 | 4250569403804 |
