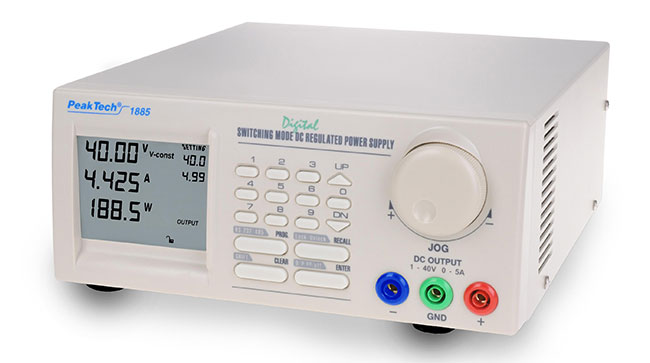

PeakTech^® 1885

Switch. Mode DC Power Supply with
RS-232 C + RS-485, 1 - 40 V/0 - 5 A DC

This user friendly programmable power supply is ideal for repetitive procedure in testing, production, or R&D environment. This unit is controlled by a MCU (micro-controller unit). Nine user presets of output voltage and current are available for instant recall. A sequence of up to 10 programmed output voltages, currents and time intervals can be set and activated via the unit´s keypad or PC interface. PC Interface RS-232 and RS-485 are built in with the unit so that data of all outputs can be collected and stored in the PC. With RS-485, one PC can remote control up to 32 units of power supplies. The LCD module displays : set values of voltage and current, actual output values of voltage and current and power, status of output on/off mode, of keypad lock/unlock mode, of CC/CV mode.

• 4 digit Multi-function LCD display (48 x 66 mm) with backlight , ± 1,5 % + 2 dgt. Accuracy
• CC and CV display with auto-cross over
• Short circuit-, overload- and over temperature protection
• Supplied with software (Windows) for remote presets, timed sequence and data logging
• Safety: EN 61010-1
• Accessories: Software for Windows 95/98/NT/2000/XP/VISTA and 7, RS-232 C Interface Cable and Manual

Download Manual

PeakTech_1885_1890
