PeakTech® 1265
THB 16,000.00
30 MHz/2 CH, 250 MSa/s,
Digital Storage Oscilloscope
Digital storage oscilloscope of the latest generation with high-resolution color display, backlight, high bandwith and high sampling rate, large internal memory and USB port. The amazing value for money and modern technology allows a wide range of applications in educations, service and quality assurance area.
- High-resolution TFT color display with 800 x 600 pixels and 65536 colors
- 20 cm (8“) TFT color display
- USB port for real time data transmission or reading of internal
- VGA output port for external monitor
- LAN connection for remote access via network
- Saving of measured values and graphics directly onto the USB-stick
- Autoset and autoscale function for easy operation
- Internal memory of 10 k points per channel or 15 waveforms
- 20 automatic measurement modes and FFT function
- PASS/FAIL function
- Safety: EN 61010-1; CAT II
- Accessories: 2 pcs. BNC cable, Pass/Fail-Adapter, USB cable, software CD for Windows 2000/XP/VISTA/7/8/10, power cable, 2 probes and manual
- Availability: ex stock - subject to prior sale
| Bandwidth | 30 MHz |
| Display | 20 cm (8") TFT with 65536 colors |
| Resolution | 800 x 600 Pixel |
| Channel | 2 CH |
| Sampling rate each channel | 125 MSa/s |
| INPUT . | |
|---|---|
| Input coupling | AC, DC, GND |
| Input impedance | 1 MΩ +/- 2 % in parallel with 10 pF +/- 5 pF |
| Input voltage | 400 V DC or ACpp |
| VERTICAL SYSTEMS . | |
| Vertical sensitivity | 2 mV - 10 V/div. |
| Rise time | ≤ 14 ns |
| DC accuracy | +/- 3 % |
| Vertical resolution | 8 Bits (2 CH simultaneously) |
| HORIZONTAL SYSTEMS . | |
| Horizontal scale | 5ns - 100s/div. |
| Sampling range | 0,5 Sa/s ~ 250 MSa/s |
| TRIGGER . | |
| Trigger type | Edge/Video/Pulse/Slope |
| Trigger mode | Auto, Normal, Single |
| Trigger coupling | DC, AC, LF, HF |
| MEASUREMENTS . | |
| 20 autom. measurements | peak-peak, cycle RMS, Vmax, Vmin, Vtop, Vbase, Vamp, overshoot, preshoot, rise time, fall time, +width, -width, +duty, -duty, delay A→B (rising), delay A→B (falling), frequency, period, min, max, FFT |
| Record length | 10.000 points/CH |

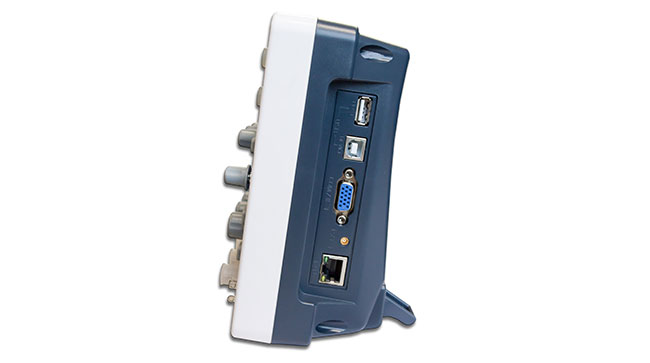

| Interfaces | USB Device 2.0, USB Host 2.0, VGA, LAN |
| Operation voltage | 100 ~ 240 V AC/rms; 50/60 Hz |
| Dimensions (WxHxD) | 355 x 178 x 118 mm |
| Weight | 1,6 kg |
| EAN-13 | 4250569402296 |
