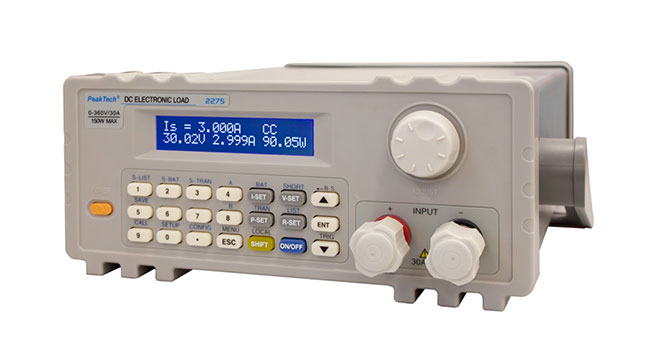

PeakTech® 2275
THB 18,000.00
SKU :
-
DC-Electronic Load with USB
This newly developed electronic load with PC interface can be used in important testing procedures for quality assurance as well as e.g. the examination of power and control equipment, batteries, fuel cells and solar cells.
For precise load control for the various applications, this device provides Constant Voltage (CV), Constant Current (CC), a Constant Resistance (CR) or a Constant Power (CP) as load control modes with a highly accurate resolution of 1mW, 1mV, 1mΩ and 1mA. In additon, the device has several automated test modes, for example a battery test or the dynamic test.
The PC interface and the Software allow freely programmable test sequences to be implemented.
- Digital controlled electronic load up to 30 A
- For DC voltages up to 360 V
- 150 W input power
- Constant-modes for voltage, current, resistance and power
- High accuracy measurement LC-display
- Battery test mode
- Dynamic load test function

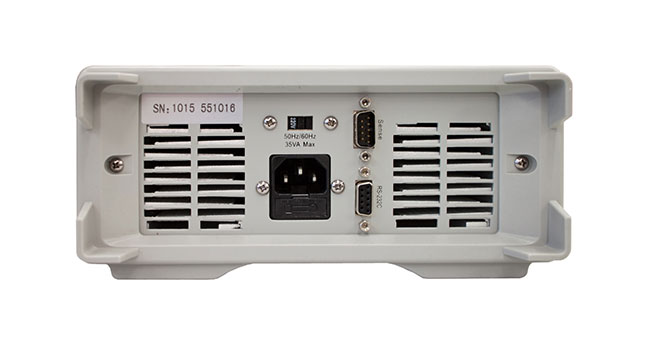

- Voltage Sense Input, external Trigger Input
- Windows 2000/XP/VISTA/7/8/8.1/10
- Accessories: Power cable, Manual, USB-to-COM Adapter, Software-CD
| CONTANT VOLTAGE (CV) : | |
|---|---|
| Resolution | 1 mV (10 V) ; 10 mV (100 V) ; 100 mV (360 V) |
| Accuracy | +/- 0,1% + 0,03% FS |
| CONSTANT CURRENT (CC) : | |
| Resolution | 1 mA (10 A) ; 10 mA (30 A) |
| Accuracy | +/- 0,1% + 0,1% FS |
| CONSTANT RESISTANCE (CR) : | |
| Resolution | 0,001 Ω (10 Ω) ; 0.01 Ω (100 Ω); 0.1 Ω (1000 Ω); 1 Ω (4 kΩ) |
| Accuracy | +/-1,0% + 0,3% FS |
| CONSTANT POWER (CP) : | |
| Range | 150 W |
| Resolution | 1 mW (10 W) ; 10 mW (100 W) 100 mW (150 / 300 W) |
| Accuracy | 0,1% + 0,1%FS |
| BATTERY TEST : | |
| Input | 0.8 ~ 120 V |
| Max. meas. capacity | 999 Ah |
| Resolution | 10 mA |
| DYNAMIC TEST : | |
| Pulse width | 10 ms ~ 10 s |
| LOAD ACCURACY : | |
| Accuracy 0~ 360 V | 0.1% + 0.03% FS |
| Accuracy 0 ~ 10 A | 0.1%+0.1%FS |
| Accuracy 10 ~ 30 A | 0.2%+0.15%FS |
| Interface | RS 232 / USB 2.0 Adapter |
| Operation voltage | 110 V ~ 240 V AC (50/60 Hz)(100~150 W) |
| Dimension (WxHxD) | 225 x 100 x 310 mm |
| Weight | 5,5 kg |
| EAN-13 | 4250569403637 |
