PeakTech® 9020
THB 21,000.00
DVB-C/S2/T2 Meter with 5" Display and H.264 Codec
This powerful DVB-meter for Signal Search in cable television, satellite or terrestrial antenna systems offers a comprehensive range of functions for daily use during the installation or testing of TV systems.
By combining all three DVB transmission formats (DVB-C, DVB-S / S2 and DVB-T / T2), the user can check all currently available TV systems.

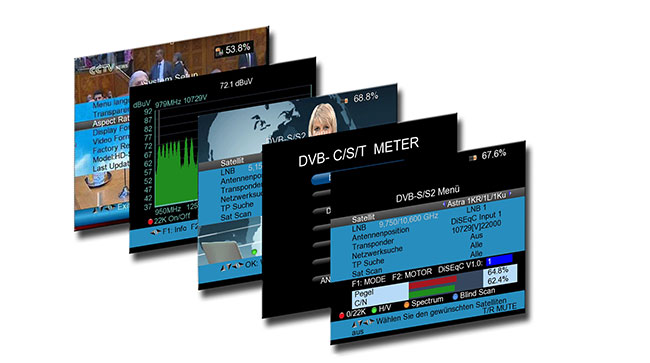

The graphical user interface with menu control allows all necessary functions such as satellite search with associated LNB settings, angle calculation of the satellite system, program search in the cable network, the channel search on terrestrial antenna systems, and the for each measurement function available spectrum analyzer, the media record and media player function which can easily be activated and used.
The integrated interfaces provide a connection to the TV via HDMI, and thus also as a complete replacement for a defective receiver. So a source of error can be identified and resolved quickly.
The AV / IN and AV / OUT input, which is used on external monitors and output devices for checking external video sources or to display the screen content, completes the wide range of features of this device, just like the screenshot and video recording capability of the live program to a connected USB memory device.
The power supply is provided by the built-in lithium-ion battery, the included AC adapter or comfortably in the car by 12V adapter for charging in the lighter socket.
Through these many important features of this device is the ideal companion every electrician or television technician in the field use.
- Note: The PeakTech 9020 uses H.264 Video Decoder for DVB-T2 (e.g. France, Austria) -
- Germany uses the H.265 standard which is not compatible
- 12.5 cm (5 ") color TFT display with 320 x240 pixels
- DVB-C, DVB-S & S2, DVB-T & T2 Program search
- Live TV display with sound
- Spectrum analyzer for all DVB functions
- Built-in TV recording function in the receiver format
- Media player for playback of photos and videos
- 16QAM to 256QAM and QPSK / 8PSK demodulator
- Fast 450 MHz processor and 256 MB SDRAM
- HDMI & AV-IN/OUT, and USB ports
- Video Decoder with 576i to 1080p scaling

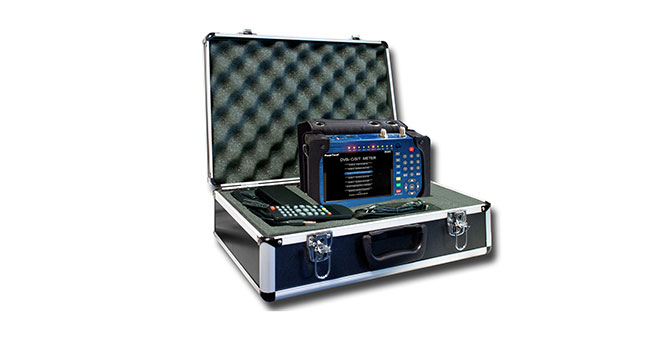

- Robust metal case and holster with carrying strap
- Removable lithium-Ion battery with 2600mAh
- Safety: EN 60950-1

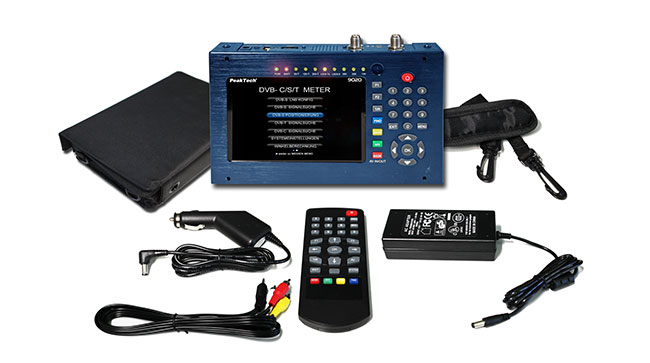

- Accessories: Metal case, AC adapter, Li-ion battery, adapter 12 car, Software for Windows XP/VISTA/7/8/10, remote control, video cable, holster, carrying strap, user manual

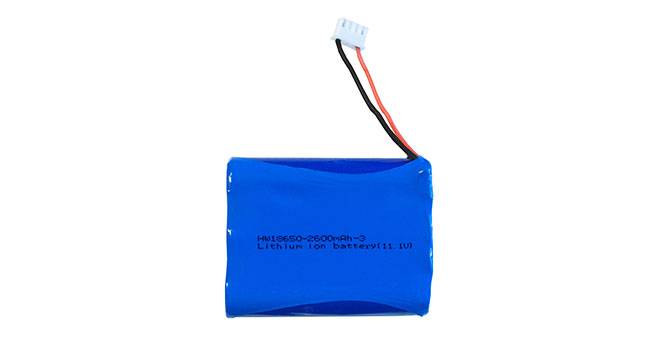

Additonal Accessories: Battery pack 11,1 V/2600 mAh, model AKKU 7
| SATELLITE : | |
|---|---|
| Standard | DVB-S / DVB-S2 |
| Frequency range | 950 MHz - 2150 MHz |
| LNB-control | 13/18 V, max. 400 mA; 22 kHz |
| Signal Level | -65 dBm ~ -25 dBm |
| Accuracy | C/N +/-0,1 dB; Level +/- 0,1 dBµV |
| DiSEqC | Version 1.0 / 1.1 |
| Demodulator (DVB-S) | QPSK |
| Demodulator (DVB-S2) | QPSK, 8PSK |
| Symbol rate | 2 Mbps ~ 45 Mbps |
| TERRESTIAL : | |
| Standard | DVB-T / T2 |
| Frequency range | 110 MHz - 862 MHz |
| Signal level | -93 dBMm ~ - 35 dBM |
| Accuracy | C/N +/-0,1 dB; Level +/- 0,5 dBµV |
| Antenna Supply | 5 V, max. 50 mA |
| Demodulator (DVB-T) | QPSK, 16QAM, 64 QAM |
| Demodulator (DVB-T2) | QPSK, 16QAM, 256 QAM |
| CABLE : | |
| Standard | DVB-C |
| Frequency range | 110 MHz - 862 MHz |
| Signal level | -93 dBM ~ -35 dBM |
| Accuracy | C/N +/-0,1 dB; Level +/- 0,5 dBµV |
| Demodulator (DVB-C) | 16QAM, 32QAM, 64QAM, 128QAM, 256QAM |
| Symbol rate | 0.2 Mbps ~ 7.2 Mbps |
| SYSTEM : | |
| Processor | 450 MHz |
| SD-RAM | 256 MByte |
| Flash | 2 MByte NOR + 128 MByte NAND |
| VIDEO DECODER : | |
| MPEG 2 | MPEG-2MP@ML, MPEG-2MP@HL> |
| MPEG 4 | MPEG-4 AVC/H264 HP@L4> |
| Resolution | HDMI1080P, 1080i.720P, 576P, 576I |
| AUDIO DECODER : | |
| Codec | MPEG 1.2. MP 3.DD/DD+AAC/AAC+WMA9/WMA9pro |
| GENERAL : | |
| Interface | 1 x USB 2.0, 1 x HDMI, 1 x AV-IN/OUTPUT |
| Power Adapter | 100 ~ 240 V AC; 50/60 Hz Input; 14 V/3 A DC Output |
| Car charger | 12 V DC Lighter Socket |
| Battery | 11.1 V; 2600 mAh |
| Dimensions (WxHxD) | 200 x 130 x 50 mm |
| Weight | 780 g |
| EAN-13 | 4250569403071 |
