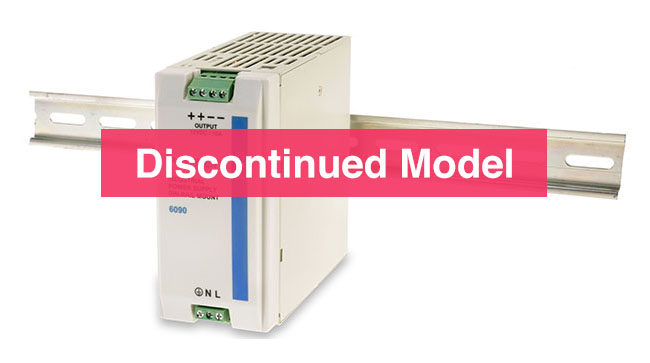

PeakTech® 6090

120 W Industrial Power Supply DIN-Rail Mount, 10 A/12 V DC

Compact DIN mounted 120 W switching mode power supply is designed for a wide range of control equipment which demands good quality regulated DC power source with excellent EMC immunity and electrical performance in an industrial environment. Up to five units can be connected in parallel.

45 - 55 kHz switching frequency at full load
electro-galvanized steel & aluminium enclosure and poly-carbonate front panel
case protection: IP20 (IEC529)
mounting: snap on type with self locking can be installed on 35 mm DIN-rails 7,5 or 15
Safety: EN-60950; safety class: degree auf protection 1 (IEC5360)
Accessories: manual

full load AC current	2,8 A at 100 V AC; 1,2 A at 230 V AC
no load AC current	100 mA at 100 V AC; 140 mA at 230 V AC
inrush current; cold start at	25°C 25 A at 100 V AC; 55 A at 230 V AC
leakage current	2 mA
power factor	min. 70 %
efficiency	82 % at 100 V AC; 83 % at 230 V AC
nominal voltage	DC 12 V
voltage adjust range	10,5 - 14 V
rated current	10 A
rated power	120 W
ripple & noise (peak to peak)	≤ 50 mV
line regulation	≤ 0,2 %
load regulation (10 - 100 %)	≤ 0,3 %
hold-up time (full load)	>30 msec. at 100 VAC; >40 msec. at 230 VAC
parallel operation	max. 5 units selectable
over load/over current	10,8 - 11,4 A, C.C. auto-restart
output over voltage	16,5 - 18,5 V DC
working temperature	EN60950: -10°C ... 60°C (UL508: 0 ... 40°C)
working humidity	20 - 90 % RH
operating voltage	90 ~ 260 V AC; 47 ~ 63 Hz
dimensions (WxHxD)	60 x 125 x 125 mm
weight	880 g
