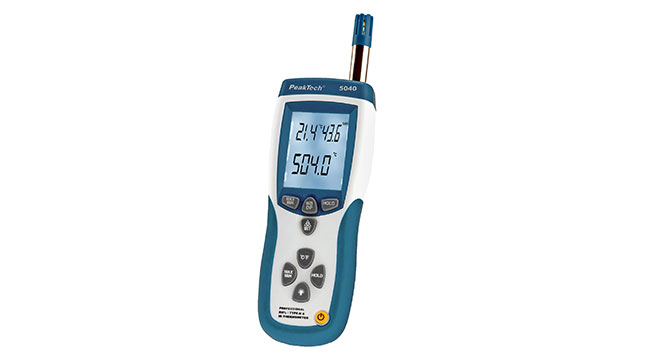

PeakTech® 5040

3 in 1 Type K & IR-Temp.-Humidity Meter with USB

3 in 1 IR-Temperatur-/Humidity Meter with digital Multifunction-LCD-display and backlight for showing RH and temperature, dew point and wet bulb at the same time makes this meter suitable for use in refrigerator, air conditioning and general heat treatment processes employed by metal processing electric power plants and chemical industry.

The IR-temperature function and laser pointer allows non-contact infrared temperature measurements of hot or moving objects from a safe distance of difficult measuring points. The USB 2.0 interface and the software enables to record the measuring values for a longer period.

Multifunction digital LCD display for showing type-K surface temperature, dew point, wet bulb, relative humidity and the surface temperature of the IR-sensor
The built-in laser identifies the target area (class 2; < 1 mW; 630 - 670 nm)
Low battery indication
Emissivity: 0,95, Auto power off
Optical resolution: 30:1 field of view
°C/°F switchable
MIN/MAX-Hold, Data-Hold
Safety: EN 60825-1
Accessories: case, stativ, type-K bead probe, USB interface cable, Software for Windows 2000/XP/VISTA/7, 9V-battery and manual

Download Manual

PeakTech_5040

Temperature (type-K)	-100 ... +1372°C; ± 1,0 % + 1°C; 0,1°C
Humidity	0 ... 100 %; ± 3 % RH; 0,1 % RH
IR-temperature	-50 ... 500°C; ± 2 % resp. 2°C; 0,1°C
Emissivity	0,95 fixed
Optical resolution	30 : 1
Wet bulb temperature	-21,6 ... +60°C; ± 1,0°C; 0,1°C
Dew point temperature	-68 ... +60°C; ± 1,0°C; 0,1°C
Laser	class: 2 output: < 1 mW wave length: 630 - 670 nm
Operation voltage	9V-battery
Dimensions (WxHxD)	76 x 257 x 53 mm
Weight	360 g
