PeakTech® 3415 USB

THB 3,000.00
SKU : -
PeakTech<sup>®</sup> 3415 USB
  • PeakTech<sup>®</sup> 3415 USB
  • PeakTech<sup>®</sup> 3415 USB
  • PeakTech<sup>®</sup> 3415 USB
  • PeakTech<sup>®</sup> 3415 USB
  • PeakTech<sup>®</sup> 3415 USB

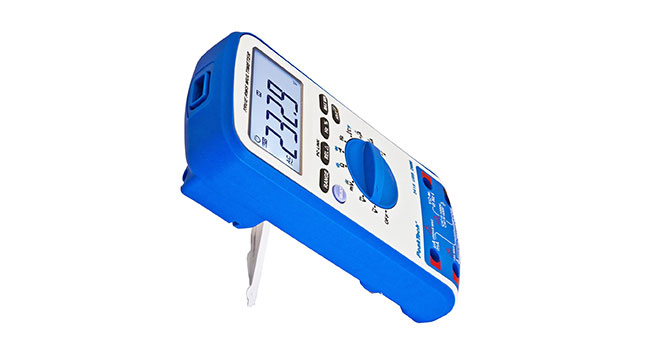

Digital Multimeter ~ 6.000 Counts ~ 1000V AC/DC ~ 10A AC/DC with TrueRMS & USB

Multimeter designed with high safety standard featuring modern style, integrated protection frame. The 3 5/6 digit, 20 mm LCD-display (max. 6000) with function symbols and backlight guarantee exact data aquisation. Optical USB standard serial port is equipped with this meter for easy connection with PC to realize macro recording and monitoring, capture of transient dynamic datas. The basic functions can be selected by a rotary switch easily and automatic range selection for DCV, ACV, DCA, ACA, Ohm, diode-, continuity-, frequency-, capacitance- and temperature measuring function.

  • Overload-protection on all ranges
  • True RMS measurement
  • Relative measurement, duty cycle
  • MIN/MAX-mode, Data-hold
  • Auto power off
  • Auto- and manual range selection
  • Low battery indication
  • Safety: EN 61010-1; CAT III 1000 V/CAT IV 600 V

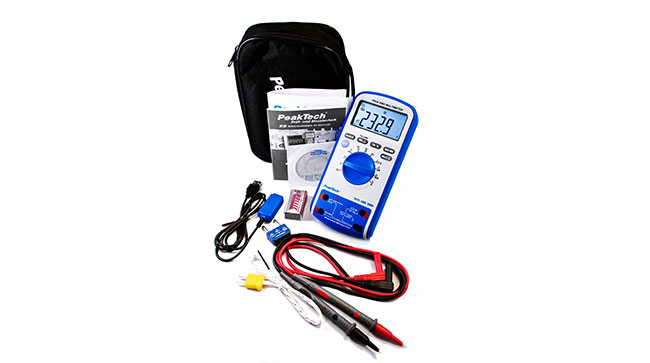

  • Accessories: carrying case, USB-interface cable, software for windows
  • 98/2000/XP/VISTA/7/8/10, typ-K-temperature probe, temperature adaptor, test leads, battery and operation manual
  • Software Download: DMM Tool
DCV 600 mV/6/60/600/1000 V; 0,1 mV; +/- 0,8 % + 5 dgt.
ACV 600 mV/6/60/600/750 V; 0,1 mV; +/- 1,0 % + 5 dgt., frequency range: 40 ... 400 Hz
DCA 600/6000 µA/60/600 mA/6/10 A; 0,1 µA; +/- 1,5 % + 3 dgt.
ACA 600/6000 µA/60/600 mA/6/10 A; 0,1 µA; +/- 1,8 % + 5 dgt., frequency range: 40 ... 400 Hz
Ohm 600 Ohm/6/60/600 kOhm/6/60 MOhm; 0,1 Ohm; +/- 0,5 % + 2 dgt.
Capacitance 60/600 nF/6/60/600 µF/6/60 mF; 10 pF; +/- 5,0 % + 10 dgt.
Frequency 100/1000 Hz/10/100/1000 kHz; 10 mHz; +/- 0,1 % + 3 dgt.
Temperature -55 ... +1000°C; 1°C; +/- 2,0 % + 3°C
Operation voltage 9 V-battery
Dimensions (WxHxD) 90 x 190 x 40 mm
Weight 500 g
EAN-13 4250569400919
